PX-55192- ZRC PRONETS 80KM XFP Optical Transceiver

PX-55192- ZRC

PRONETS 80KM XFP Optical Transceiver

Features

XFP MSA Compliant

data rate from 9.95 Gbps to 11.1Gbps

No Reference Clock required

Cold Start up Wavelength Compliance

EML transmitter and APD receiver

link length up to 80km

Low Power Dissipation 3.5W Maximum

-5ºC to 70ºC Operating Case Temperature

Diagnostic Performance Monitoring of module temperature,

supply Voltages, laser bias current, transmit optical power,

receive optical power

RoHS compliant and lead free

Applications

SONET OC-192&SDH STM 64

10G Ethernet

80 km 10G Fiber Channel

Description

PRONETS XFP Transceiver is designed for 10G SDH, 10G ZR and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. PRONETS XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

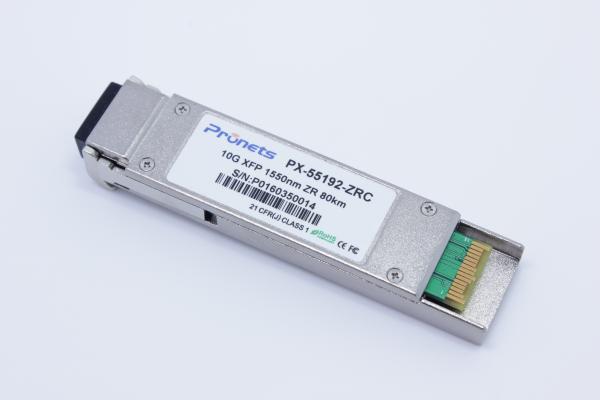

PX-55192- ZRC PRONETS 80KM XFP Optical Transceiver Images
