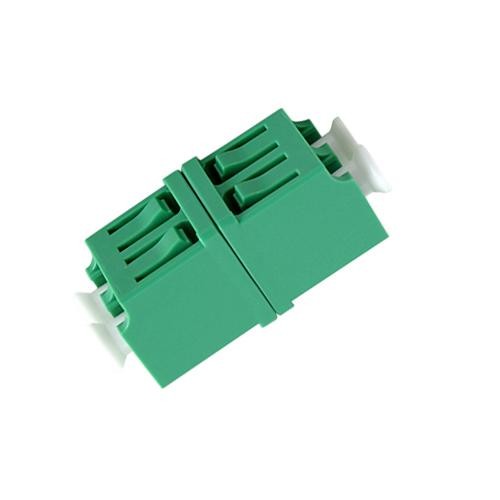

Adapter LC/APC Duplex

Name: Adapter LCAPC Duplex
Brand: Pronets or OEM
Price: 1 USD

Brand Name : Pronets or OEM

Model Number : LC/APC DX

Certification : UL FCC RoHS FDA

Place of Origin : CHINA

type : fiber optical active passive product

keyword : optical transceiver/Network switch/Media converter

Contact Now

Description:

The optical fiber adapter is used to mate two connectors together, usually mounted in a distribution panel or wall box. The fiber optic adapters are precision made to ensure perfect alignment of connectors, reducing insertion loss. In most cases, it is a critical part of the system aligning the ferrule part of the connectors keeps the fiber in perfect alignment.

LC fiber optic adapter has simplex, duplex, and quad types. The color can be blue, beige, green, aqua optional. The adapter can be with flange or w/o flange. High quality ceramic sleeves are used for such optic fiber adapters.

Specification:

Item		LC, SC, ST, FC, MTRJ, MU, SMA, D4, E-2000,etc
Type		Multi-Mode	Single-Mode
Light Characteristic	Operating Wavelength	850nm&1300nm	1310nm & 1550nm
	Typical Insertion Loss	0.2dB & 0.2dB	0.2dB & 0.2dB
Mechanical Testing	Repeatability	≤0.2dB
	Exchange	≤0.2dB
	Durability	>1000 (Times)
Temperature	Storage Temperature	-25℃ ~+85℃
	OperatingTemperature	-25℃ ~+85℃

Features:

LC, FC, SC, ST, MTRJ, MU, MPO and Hybrid: FC/SC, SC/ST, FC/ST,LC/SC optional

Simplex, duplex optional
Single mode and multimode optional
Available without flanges or with flange, saving panel space
Meet JIS5974 and bellcore GR-910-CORE Compliance
Compliant with IEC874-14 & IEC874-19 and NTT standard compatible
All parts compliant with RoHS

Application:

Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
